Articulated arm
Classification :
Keywords:
Curved Arm
1. Main technical parameters:
|
model |
TBL-14 |
|
|
Maximum working height |
16M |
|
|
Maximum platform height |
14M |
|
|
load |
200kg |
|
|
working radius |
7.5M |
|
|
Rotation range |
360 degree continuous rotation |
|
|
Table size |
700/900/1100mm |
|
|
Collection length |
5500mm |
The whole machine is unfolded and towed to a length of 5800mm. |
|
Collection width |
1.7m |
|
|
Collection height |
2.2m |
|
|
total weight |
1900kg |
|
|
power |
AC2.2KW |
Explosion-proof motor electrical control |
|
Oil cylinder |
Japan NOK sealing ring |
Jinan rises eastward |
|
slewing support |
Fully sealed dust-free rotation |
Jiangyin Huafang Machinery |
|
track |
Shock absorbing tracks |
Jining |
|
Hydraulic system |
Hydraulic control valve, etc. |
Ward |
|
control method |
Up and down control |
Lifting speed is controllable, stepless speed change |
|
safety valve |
Cylinder protection |
Tiandi Hydraulic |
|
High-pressure pipeline |
2SN10-53MPa |
Hebei Eurasia |
|
hydraulic station |
KT6-H |
Cooltech Hydraulic |
|
|
|
|
|
hydraulic motor |
BMR-160 |
Jining Liton Hydraulic |
|
color |
red |
or customized |
|
tire |
pneumatic tires |
70R15c/225 |
|
torsion shaft |
Balanced and stable |
Strong adaptability to road conditions |
2. Product main features:
●The machine has overload and over-limit protection functions
● Failure emergency descent system
● Up and down control, continuously variable transmission system
● Emergency stop button
3. Product details
 |
 |
 |

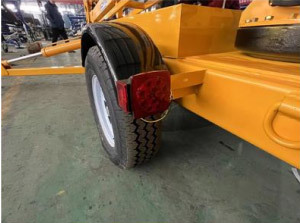

| tire | support leg | controller |
| Anti-slip and wear-resistant, strong load-bearing capacity ensures smooth movement of equipment | Made of manganese steel, the structure is stable, easy to operate, and can be automatically leveled. | The platform can be controlled to rotate 360° at high altitude for multi-directional and efficient operations. |
 |
 |
 |

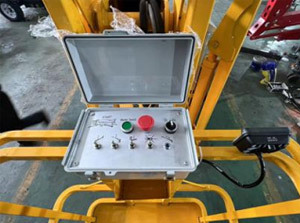

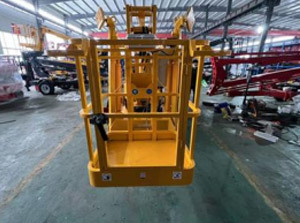

| Platform control panel | work platform | drawbar |
| External guards protect control components from damage | The guardrail is made of Q235 steel, which is not easy to bend and makes the work safer. | The international universal tow bar is foldable and can be used to hang different types of cars. |
4. Vehicle tools and spare parts:
1. One set/set of tool box
2. 1 safety helmet/set, 1 set of safety belt/set
3. 2 toggle switches/unit
4. Cylinder sealing ring 1 set/set
5. 1 pair of gloves/set
6. Instruction manual
Packaging and shipping

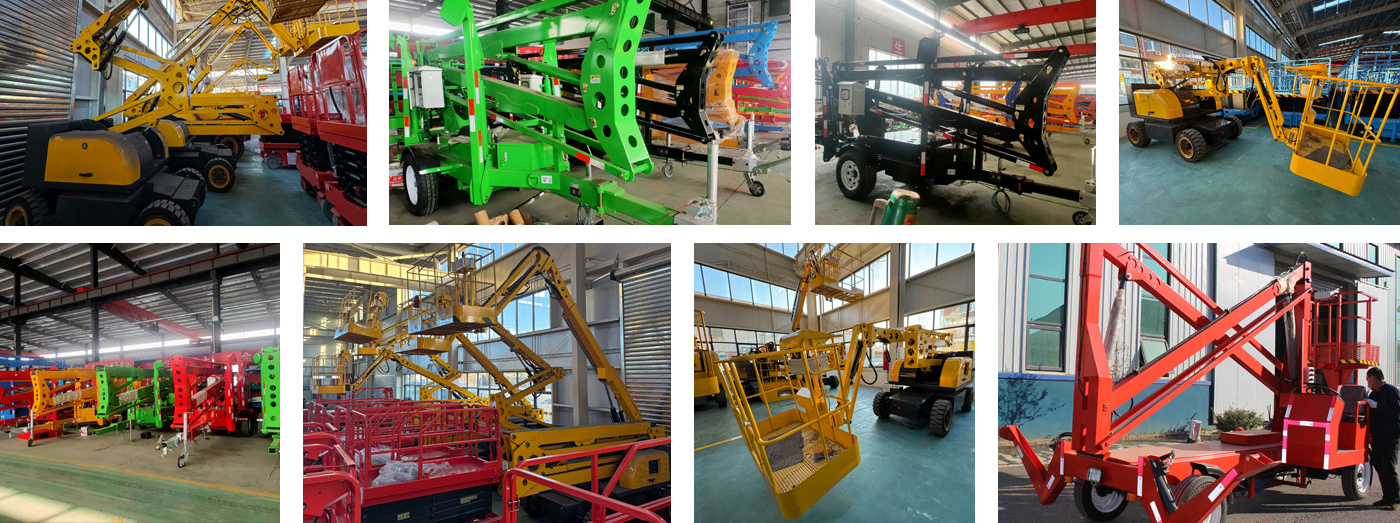

Factory Appearance
